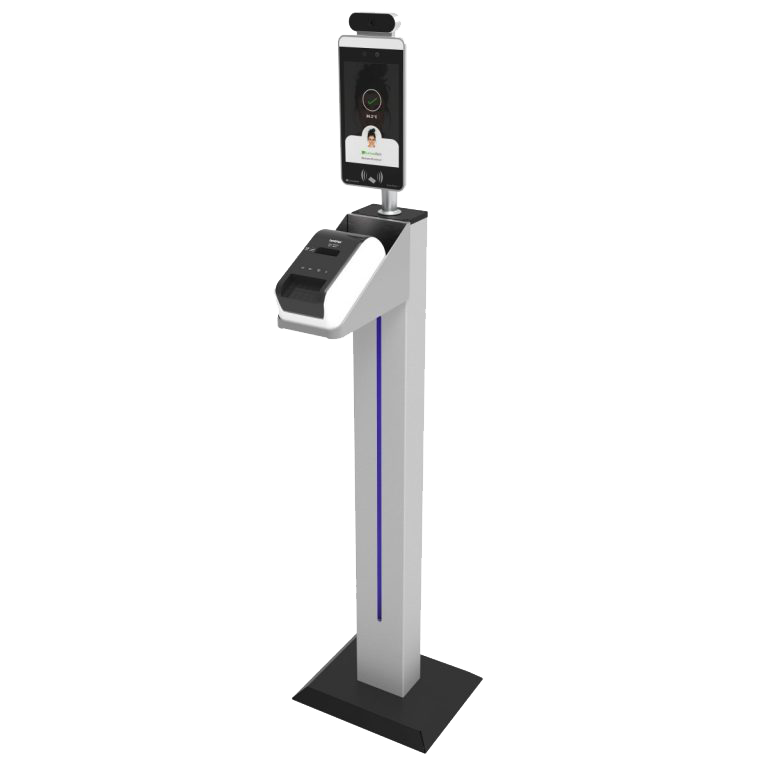

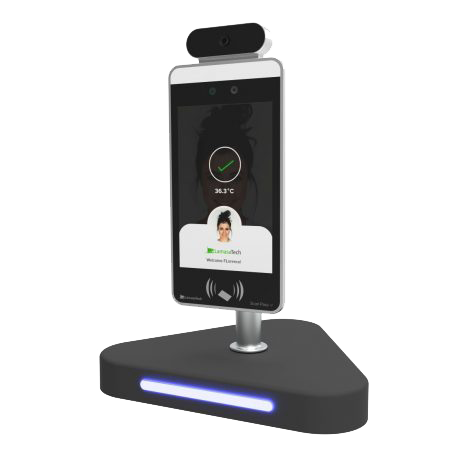

Personnel kiosks with temperature check and facial recognition

The Zentron range of non-contact kiosks automatically read temperature in ~ 1 second. Carry out contactless temperature checks for employees, visitors and customers to identify abnormal temperatures.

Screen all individuals on entry to office buildings, manufacturing plants, factories, healthcare settings, supermarkets, hotels, schools and more. Contact tracing is made easy with full logs of entry times and temperature readings.



  • Contactless temperature check in ~ 1 second
  • On-screen message displays temperature reading
  • Optional verbal message and traffic light style LEDs
  • 4 configurations: desktop stand, wall mount, floor stand  or integrate into existing surface
  • Email alerts for abnormal temperature readings or individuals not wearing a mask
  • Automatic ID badge printing for visitors and staff
  • Optional facial recognition for registered individuals
  • Built-in RFID reader for sign in using access control cards/fobs
  • Integrate with gates, turnstiles and door access
  • Plug and play solution – can operate standalone with power only
  • Battery-powered option with 12+ hours continuous power
  • Access and export your logs to excel
  • 1-year standard warranty
  • Calibrated and quality assured in the UK
  • QR code reader scans QuickPass entry pass for visitors – coming soon!
  • On-screen health screening forms/ CDC questionnaires – coming soon!
DOWNLOAD BROCHURE

SEE THE WORLD IN A NEW WAY HIKVISION THERMAL CAMERAS

All objects with a temperature above absolute zero emit thermal
radiation, even at low levels.

This kind of radiation, invisible to the human eye, can be detected by
thermal imaging sensors. Thermal cameras can produce images in
the visual spectrum by detecting temperature differences between
an object and its surroundings. The larger the difference, the bigger
the contrast variety, making details visible. Compared to visible-
light cameras, thermal cameras can be used for applications in more
challenging environments.

AUTO GAIN CONTROL (AGC):

Adjusts the dynamic range of an image & retains permeability. “Adaptive” AGC – a feature of Hikvision thermal cameras – is a more advanced algorithm than “linear” AGC, found in other manufacturers’ cameras.

DIGITAL DETAIL ENHANCEMENT (DDE):

Based on an enhanced algorithm for a region of interest, ensures images display more details.

3D DIGITAL NOISE REDUCTION (DNR):

Through noise reduction processing of the original signal, hot pixels are minimized, rendering more refined images.

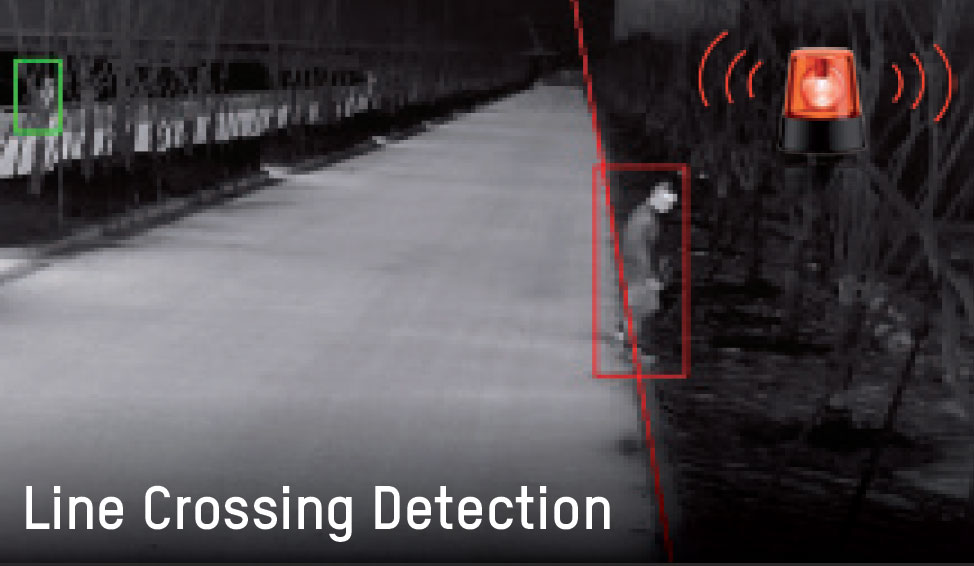

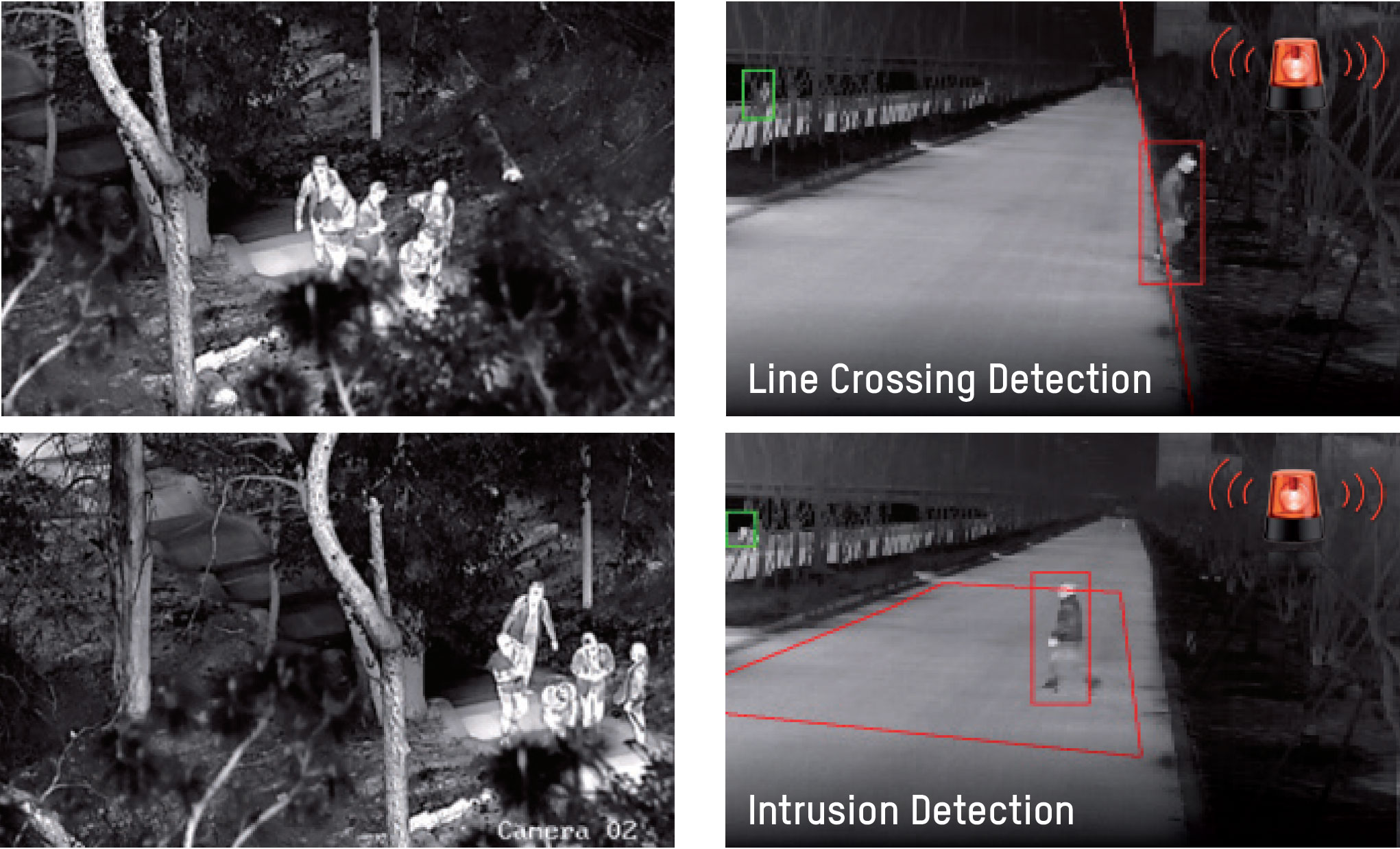

ADVANCED DETECTION ABILITY

Integrated with intelligent video applications such as line crossing and intrusion detection, these cameras can automatically trigger an alert and at the same time trigger a traditional pan / tilt / zoom camera to supply pertinent video to an operator. This application becomes especially effective in perimeter protection and area surveillance applications.
2
343

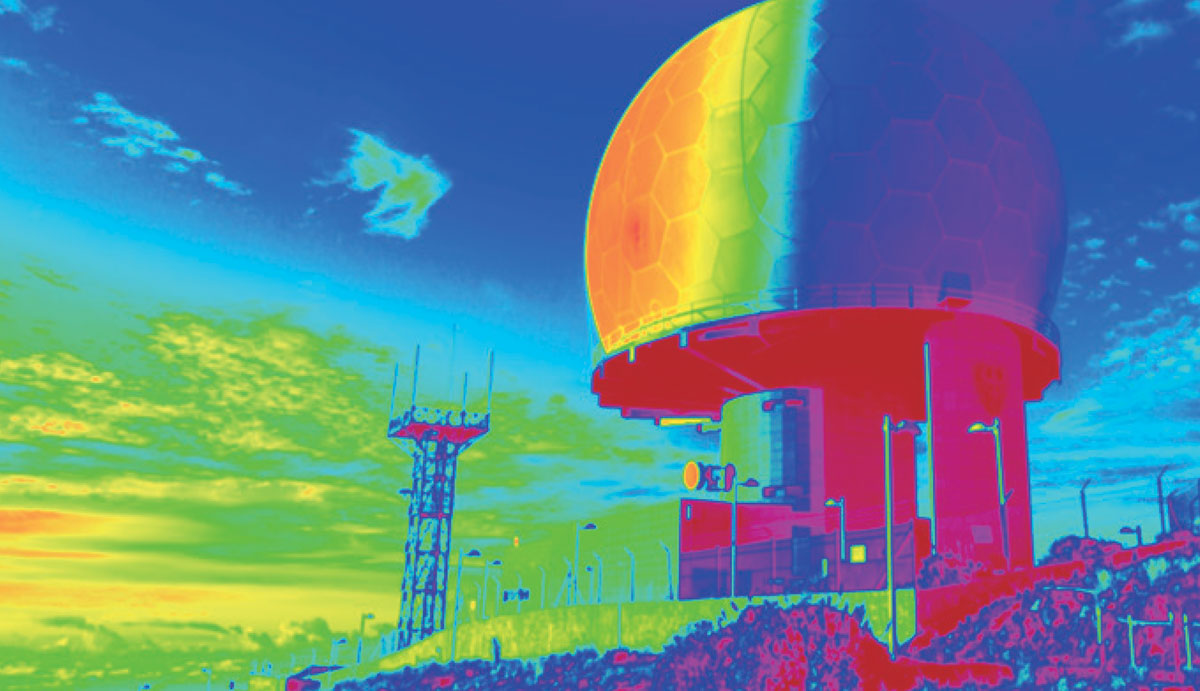

TEMPERATURE MEASUREMENT

Thermal cameras can monitor temperatures of specified objects; if temperatures exceed or fall below a certain limit, an alarm will be triggered. They can also track highlighted temperature-spans in an image through isotherm palettes. This enables an interpretation of events in a scene. Thermal cameras are the ideal choice for the prevention of fires, equipment over-heating, damage caused by freezing, and many other hazards.

EXCELLENT ENVIRONMENTAL ADAPTABILITY

Thermal sensors are only slightly affected by changing light conditions, total darkness, or other challenging weather such
as rain, fog or snow. This makes thermal cameras a perfect platform on which to build more efficient, 24/7 surveillance
systems.

A COMPLETE RANGE OF THERMAL PRODUCTS

Combining self-developed thermal imaging technology with Hikvision’s extensive experience in the video surveillance field, we are equipped to provide a full range of thermal products – all of which are able to meet our customers’ various requirements. The single-lens bullet cameras provide an economical total cost of ownership, and the dual-lens products – bullet cameras, speed domes, and positioning systems – offer pan & tilt flexibility and simultaneous video streams that include both visible light and thermal imaging.

Thus, complex functions can be achieved. For example, bi-spectrum linkage can trigger automatic optical tracking if thermal units detect a target, and the fire detection function can locate fires and automatically zoom in with a traditional camera for visible confirmation.

To meet accurate temperature-measuring requirements, we created thermography bullet & PTZ cameras, which support point, line, and frame temperature measurement types. Users can set upper and lower temperature limits. When the temperature exceeds set limits, an alarm will be triggered. We have also introduced handheld thermal devices for industrial testing or outdoor activities. It’s easy to carry and records precise measurements.

A COMPLETE RANGE OF THERMAL PRODUCTS

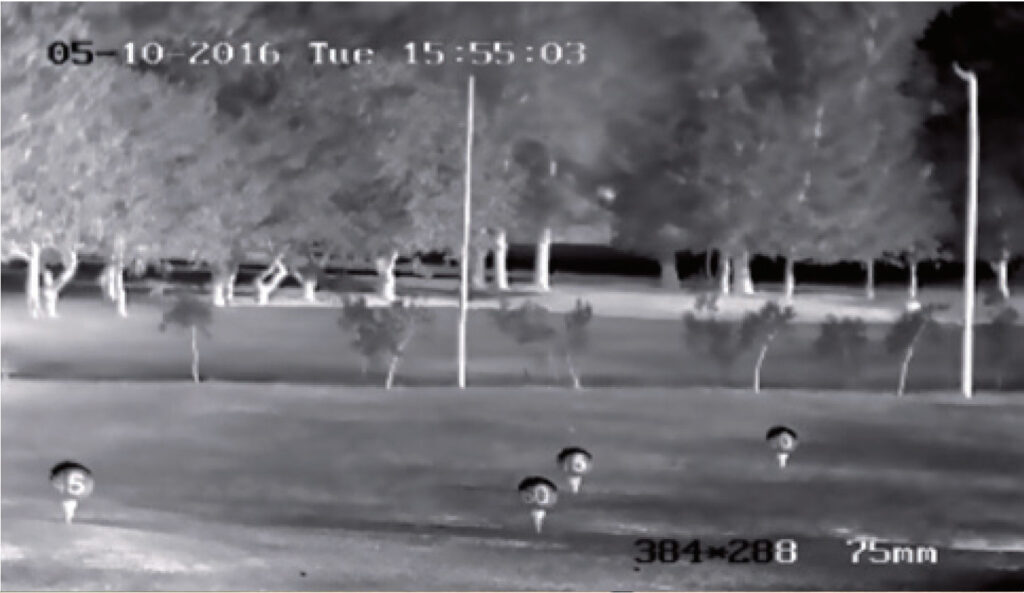

PERIMETER PROTECTION

KEY-REGION INTELLIGENT
DETECTIONS

Rapid target lock and alarm triggering, even in complete darkness and challenging conditions such as rain, smoke, dust, and snow.

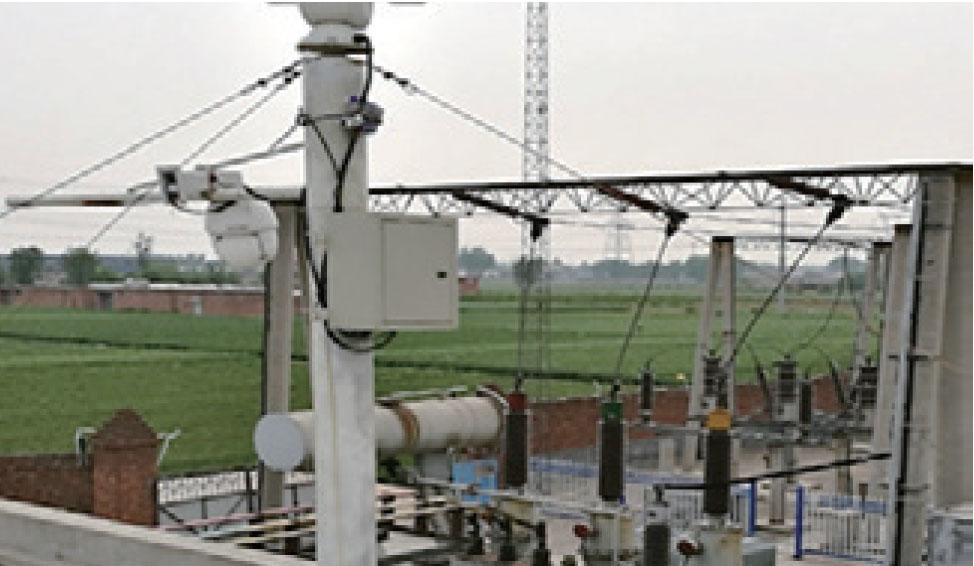

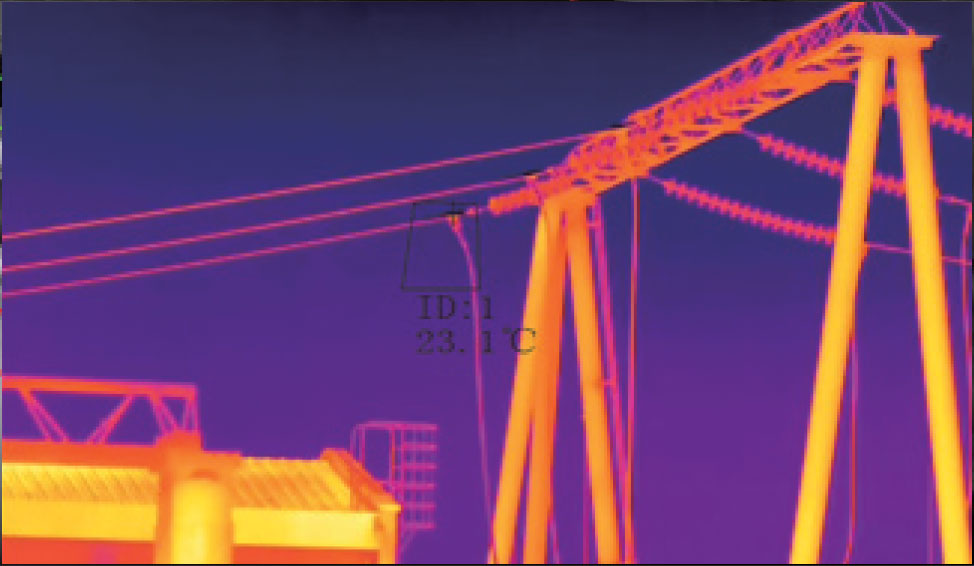

THERMOGRAPHY

TO AVOID DAMAGE

The radiometric measurement feature inside the camera can help you detect temperature deviations in an early stage to prevent damage due to overheating.

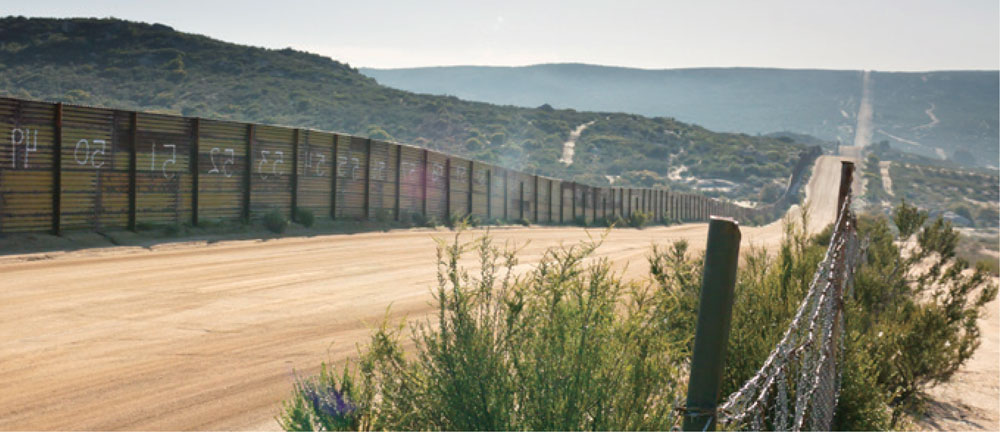

PROTECTION

OF BORDERS & COASTLINES

Long-range perimeter protection is only slightly affected by harsh weather conditions.

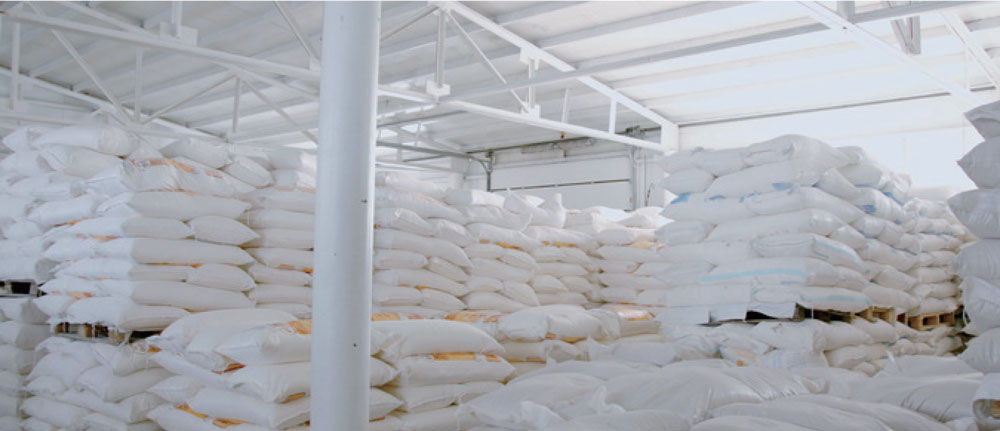

FIRE & THEFT PREVENTION

IN WAREHOUSE SETTINGS

Thermal cameras can detect temperature anomalies of a starting fire before the smoke is detected by a conventional fire detector. Even in low contrast situations the thermal cameras can detect humans in the early stages of an intrusion.

SECURITY Cameras

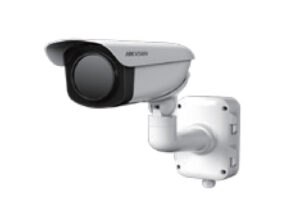

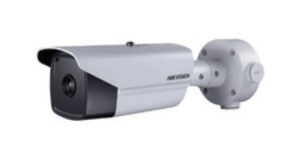

DS-2TD2166-7/15/25/35
DS-2TD2166T-15/25

Thermal Network single-lens Bullet Camera

• Thermal: 640×512
• 7mm (88°)/ 15mm (39°)/ 25mm (24°)/35mm (17°) thermal
lens optional
• Main/Sub/Third stream in max resolution at 50fps
• Supports line crossing and intrusion detection
• Supports temperature exception alarm
• Supports fire detection
• -T: -20°C ~ 550°C (-4°F to 1,022°F) temperature range,
Max (±2°C, ±2%) temperature accuracy (only DS-2TD2166T
support)
• IP66

Learn more

DS-2TD2136-7/10/15/25/35
DS-2TD2136T-10/15/25

Thermal Network Single-lens Bullet Camera

• Thermal: 384×288
• 7mm(60°)/10mm(36°)/15mm (24°)/ 25mm(15°)/
35mm (11°) thermal lens optional
• Main/Sub/Third stream in max resolution at 50fps
• Supports line crossing and intrusion detection
• Supports temperature exception alarm
• Supports fire detection
• -T: -20°C ~ 550°C (-4°F to 1,022°F) temperature range,
Max (±2°C, ±2%) temperature accuracy (only DS-2TD2136T
support)
• IP66

Learn more

DS-2TD2366-50/75/100

Thermal Network Single-lens Bullet Camera(Long focal lens)

• Thermal: 640×512
• 50mm (12.42°)/ 75mm (8.30°)/100mm (6.23°) thermal lens
optional
• Supports auto-focus
• Main/Sub/Third stream in max resolution at 50fps
• Supports line crossing and intrusion detection
• Supports temperature exception alarm
• Supports fire detection
• IP66

Learn more

DS-2TD2336-50/75/100

Thermal Network Single-lens Bullet Camera(Long focal lens)

• Thermal: 384×288
• 50mm (7.47°)/ 75mm (4.98°)/100mm (3.74°) thermal lens
optional
• Supports auto-focus
• Main/Sub/Third stream in max resolution at 50fps
• Supports line crossing and intrusion detection
• Supports temperature exception alarm
• Supports fire detection
• IP66

Learn more

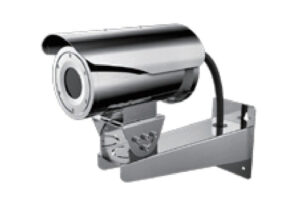

DS-2TD2466-25/50

Thermal Network Single-lens Bullet Camera (Anti-corrosion)

• Thermal: 640×512
• 25mm (24°)/ 50mm (12.42°) thermal lens optional
• Supports auto-focus
• Main/Sub/Third stream in max resolution at 50fps
• Supports line crossing and intrusion detection
• Supports temperature exception alarm
• Supports fire detection
• 316L stainless steel housing
• IP66

Learn more

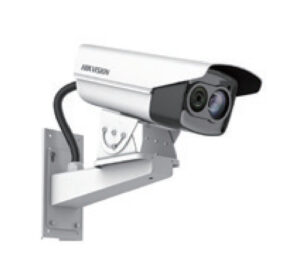

DS-2TD2235D-25/50

Thermal + Visible Bi-spectrum Network Bullet Camera

• Thermal: 384×288, Visible: 1920×1080
• Thermal: 25mm (21.7°)/ 50mm (11°) thermal lens optional
• Darkfighter Ultra low light, Min. Illumination 0.002lux (color)
• Supports line crossing and intrusion detection
• Supports temperature exception alarm
• Supports fire detection
• Up to 120m IR
• IP66

Learn more

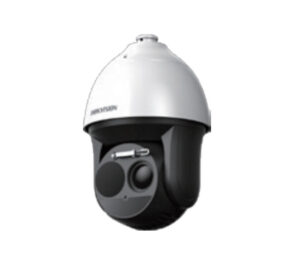

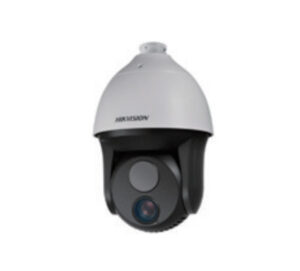

DS-2TD4035D-25/50

Thermal + Visible Bispectrum Network Speed Dome

• Thermal: 384×288, Visible: 1920×1080
• Thermal: 25mm (21.7°)/ 50mm (11°) thermal lens optional
• Visible: 4.3~129mm vari-focal lens, 30x optical zoom
• 360° endless pan range, -15°~ 90° tilt range
• Supports line crossing and intrusion, which can be linked
to auto tracking
• Supports temperature exception alarm
• Supports fire detection
• Up to 200m IR
• IP66

Learn more

DS-2TD4166-25/50

Thermal + Visible Bispectrum Network Speed Dome

• Thermal: 640×512, Visible: 1920×1080
• Thermal: 25mm (24°)/ 50mm (12.42°) thermal lens optional
• Visible: 5.7-205.2 mm vari-focal lens, 36x optical zoom
• Darkfighter Ultra low light, Min. Illumination 0.002lux (color)
• 360° endless pan range, -15°~ 90° tilt range
• Supports line crossing and intrusion, which can be linked
to auto tracking
• Supports temperature exception alarm
• Supports fire detection
• Up to 200m IR
• IP66

Learn more

DS-2TD4136-25/50

Thermal + Visible Bispectrum Network Speed Dome

• Thermal: 384×288, Visible: 1920×1080
• Thermal: 25mm (15°)/ 50mm (7.47°) thermal lens optional
• Visible: 5.7-205.2 mm vari-focal lens, 36x optical zoom
• Darkfighter Ultra low light, Min. Illumination 0.002lux (color)
• 360° endless pan range, -15°~ 90° tilt range
• Supports line crossing and intrusion, which can be linked
to auto tracking
• Supports temperature exception alarm
• Supports fire detection
• Up to 200m IR
• IP66



Learn more

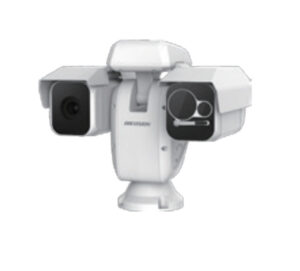

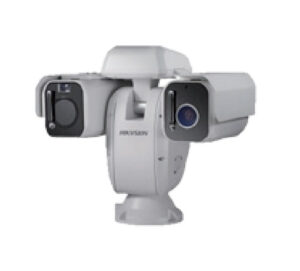

DS-2TD6135-50/75B2L
DS-2TD6166-50/75B2L

Thermal + Visible Bi-spectrum Network PTZ Camera

• Thermal: 384×288/640×512, Visible: 1920×1080
• Visible: 8~250mm vari-focal lens, 32x optical zoom
• Thermal: 50mm (6135: 11°, 6166: 12.4°)/ 75mm (6135:
7.3°, 6166: 8.3°) thermal lens optional
• 360° endless pan range, +40°~ -90° tilt range
• Supports line crossing and intrusion detection with
smart tracking linkage
• Supports temperature exception alarm
• Supports fire detection
• Up to 500m Laser
• IP66

Learn more

DS-2TD6135T-25/50A2L

Thermometric Thermal + Optical Bi-spectrum Network PTZ Camera

• Thermal: 384×288, Visible: 1920×1080
• Visible: 4.3~129mm vari-focal lens, 30x optical zoom
• Thermal: 25mm (21.74°)/ 50mm (10.97°) thermal lens
optional
• 360° endless pan range, +40°~ -90° tilt range
• -20°C ~ 550°C (-4°F to 1,022°F) temperature range,
Max (±2°C,±2%) temperature accuracy
• Supports line crossing and intrusion detection with smart
tracking linkage
• Supports fire detection
• Up to 500m Laser
• IP66

Learn more

DS-2TD6236-50H2L/75C2L

Thermal + Visible Bispectrum Network PTZ Camera

• Thermal: 384×288, Visible: 1920×1080
• Thermal: 50mm (7.47°) / 75mm (4.98°) thermal lens
optional
• Visible: 5.7~205.2mm / 6.7-330 mm vari-focal lens,
36x / 49x optical zoom optional
• 360°endless pan range, +40°~ -90° tilt range
• Supports line crossing and intrusion detection with smart
tracking linkage
• Supports temperature exception alarm
• Supports fire detection
• Up to 500m Laser
• IP66

Learn more

DS-2TD6266-50H2L/75C2L/100C2L

Thermal + Visible Bi-spectrum Network PTZ Camera

• Thermal: 640×512, Visible: 1920×1080
• Thermal: 50mm (12.42°) / 75mm (8.30°) / 100mm (6.23°)
thermal lens optional
• Visible: 5.7~205.2mm / 6.7-330 mm vari-focal lens,
36x / 49x optical zoom optional
• 360° endless pan range, +40°~ -90° tilt range
• Supports line crossing and intrusion detection with smart
tracking linkage
• Supports temperature exception alarm
• Supports fire detection
• Up to 500m Laser
• IP66



Learn more

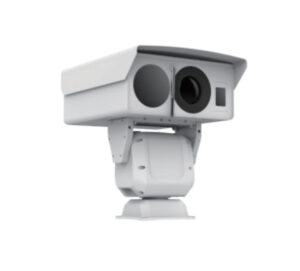

DS-2TD8166-75/100C2F
DS-2TD8166-150ZE2F/180ZE2F

Thermal + Visible Bi-spectrum Network Positioning System

• Thermal: 640×512, Visible: 1920×1080
• Thermal: 75mm / 100mm fixed thermal lens
30~150mm/45~180mm vari-focal thermal lens optional
• Visible lens: 6.7-330 mm, 12.5~775mm vari-focal lens optional
• 360° endless pan range, +45°~-45° tilt range
• 0.01°/s to 40°/s pan speed, 0.01°/s to 20°/s tilt speed
• Supports line crossing and intrusion detection with smart
tracking linkage
• Supports temperature exception alarm
• Supports fire detection
• Laser module optional, up to 3km
• IP66

Learn more

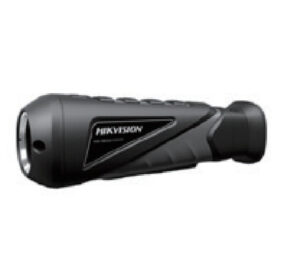

DS-2TS03-25UM/W

Handheld Observational Thermal Camera

• Thermal: 384×288
• 25mm (15°) thermal lens
• 0.39” OLED, 1024×768
• Built-in memory module (16GB)
• Hot spot tracking
• Support Wi-Fi
• Support Hik-Connect
• >5 hours operating time
• IP67
• 2m fall resistant level

Learn more

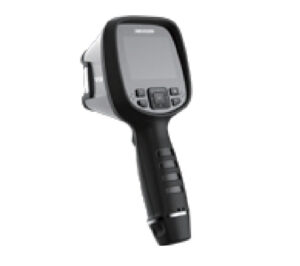

DS-2TP03-15VM/W

Handheld Thermometric Thermal Camera

• Thermal: 384×288 17μm, Visible: 2MP
• 15mm (25°)thermal lens
• 3.5-inch LCD Capacitive Touch Panel 320×240
• -20°C ~ 650°C (-4°F to 1,202°F) temperature range
• Max (±2°C,±2%) temperature accuracy
• 64GB built-in memory module
• >4 hours operating time
• IP54

Learn more
